Mini Split Confortotal Heat Pump Standard WiFi

Mini Split Confortotal Heat Pump Standard WiFi

$360.00 USD
$360.00 USD
Sale Sold out
Voltage
TON
Model

Technical Sheet: Mini Split Confortotal Heat Pump Standard WiFi

1. General Description

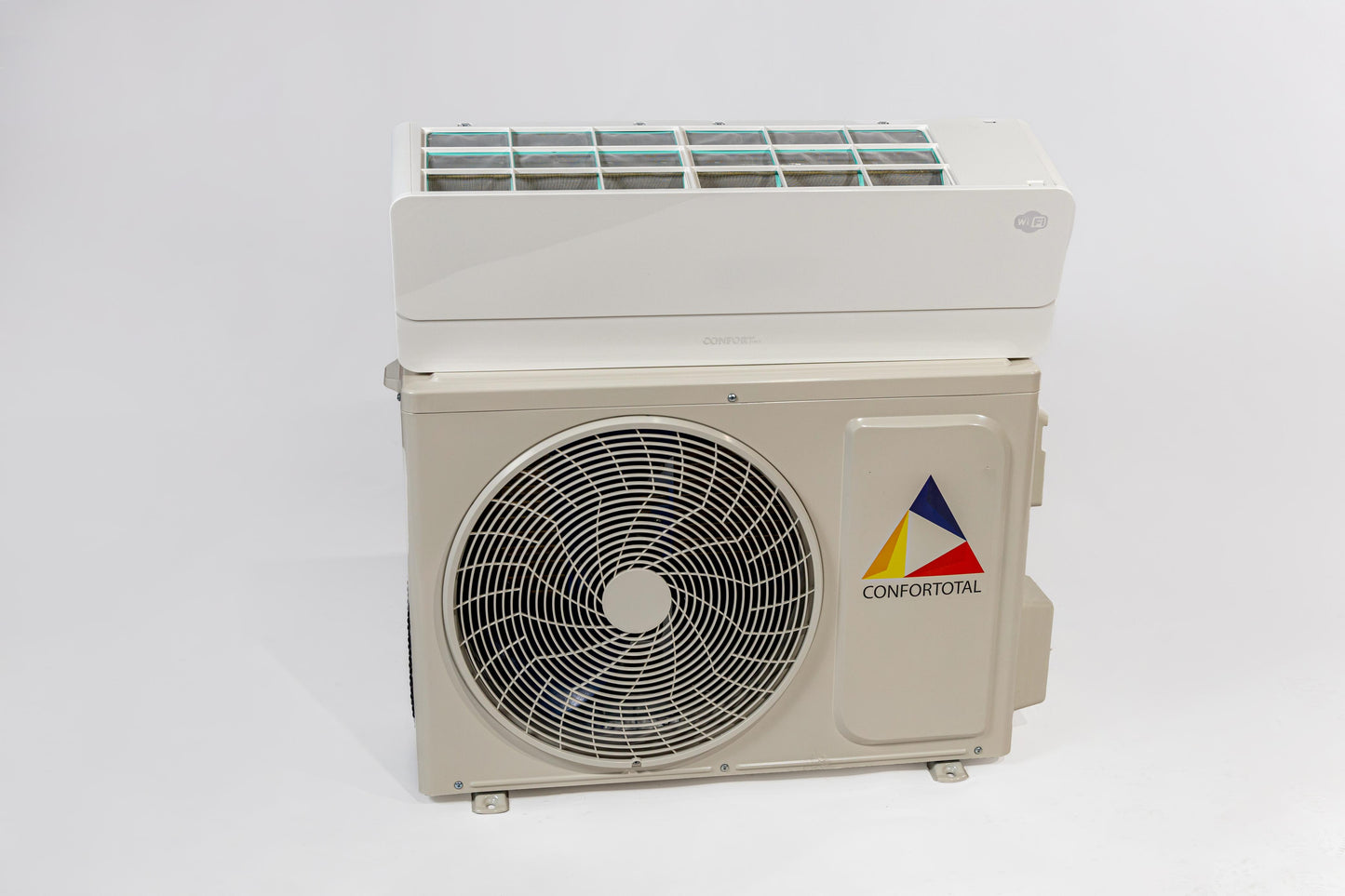

A Mini Split type climate control system (indoor and outdoor unit) equipped with Heat Pump technology to offer both cooling and heating. This "Standard WiFi" line stands out for including smart connectivity straight from the factory, allowing remote control and ambient monitoring through mobile devices.

2. Configuration Variants

Based on the availability options (reflected in the image_1c2429.png file), the equipment can be ordered under the following exact combinations:

  • Electrical Voltage: 110 V | 220 V

  • Capacities (Tons): 1 TON | 1.5 TON | 2 TON | 3 TON

  • Model Termination: D | 0 | C

3. Technical Specifications by Capacity

Capacity Equivalence (BTU/h) Voltage Options Recommended Application
1 TON 12,000 BTU/h 110 V / 220 V Standard rooms, small offices (12 - 16 m²).
1.5 TON 18,000 BTU/h 220 V Master bedrooms, medium living rooms (16 - 24 m²).
2 TON 24,000 BTU/h 220 V Open areas, small commercial spaces (24 - 32 m²).
3 TON 36,000 BTU/h 220 V Large spaces, high ceilings, or areas with higher thermal load (32 - 45 m²).

4. Operational Features

  • Climate Modes:

  • Cool

  • Heat (Via a reversing valve)

  • Dry (Dehumidification for moisture control)

  • Fan Only (Ventilation without starting the compressor)

  • Auto (Automatic adjustment based on ambient temperature)

  • WiFi Connectivity: Integrated network module in the front panel (receiver board) for pairing with Smart Home applications, allowing remote scheduling (Timer) and temperature adjustments from anywhere.

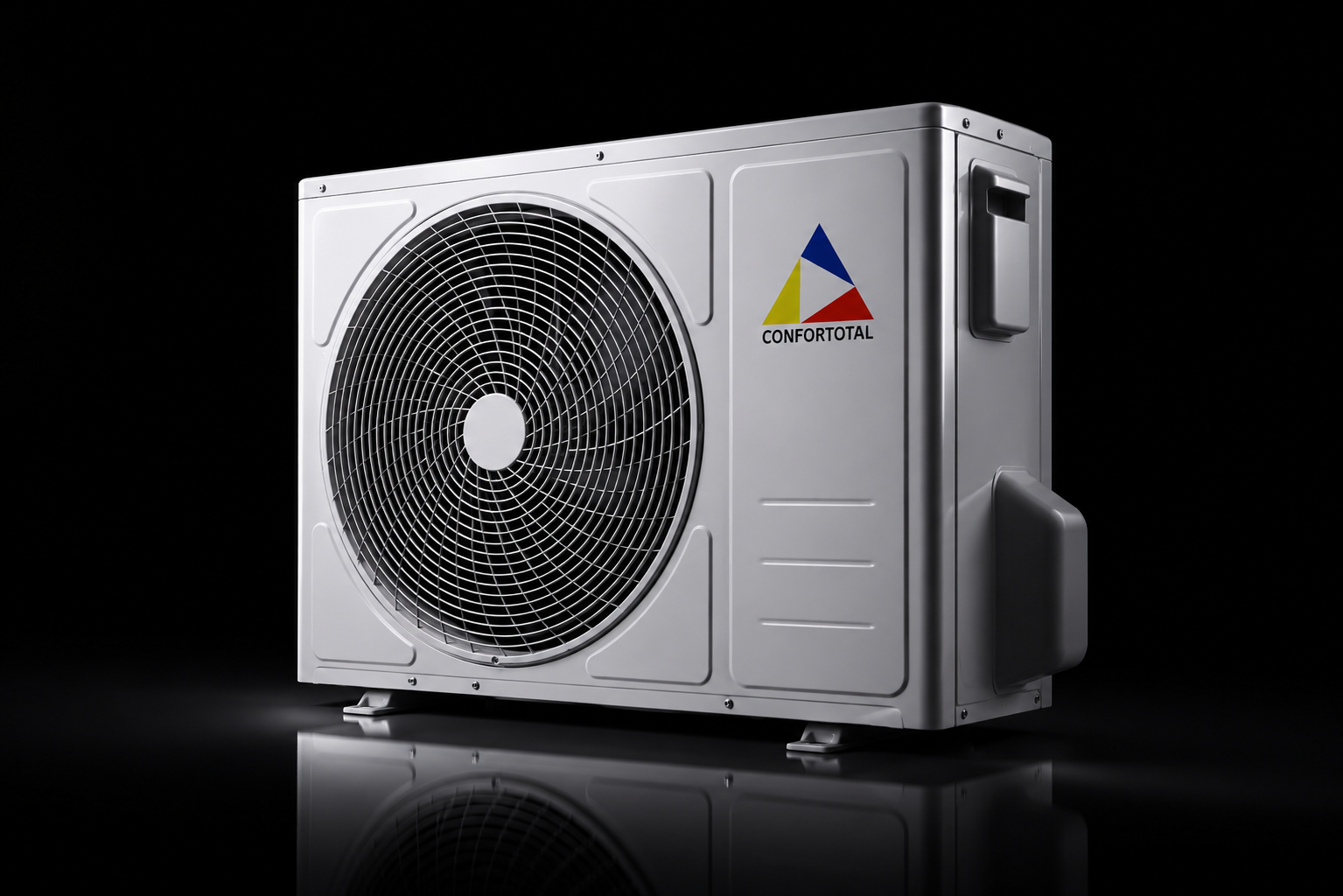

  • Refrigerant Gas: Uses current standard refrigerants (usually R410A or R32) pre-charged at the factory in the outdoor unit (condenser) for a basic pipe length (typically 3 to 5 meters).

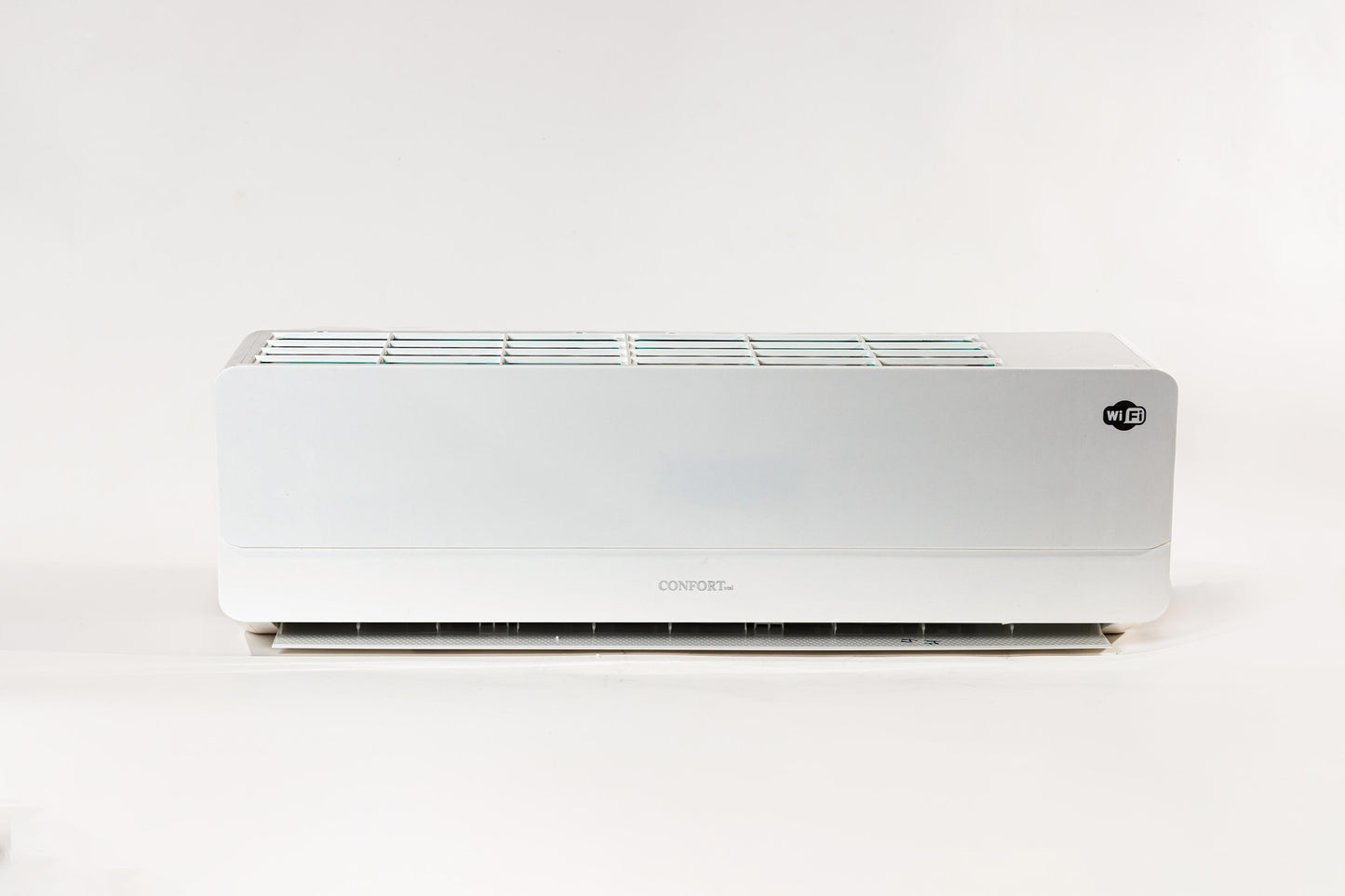

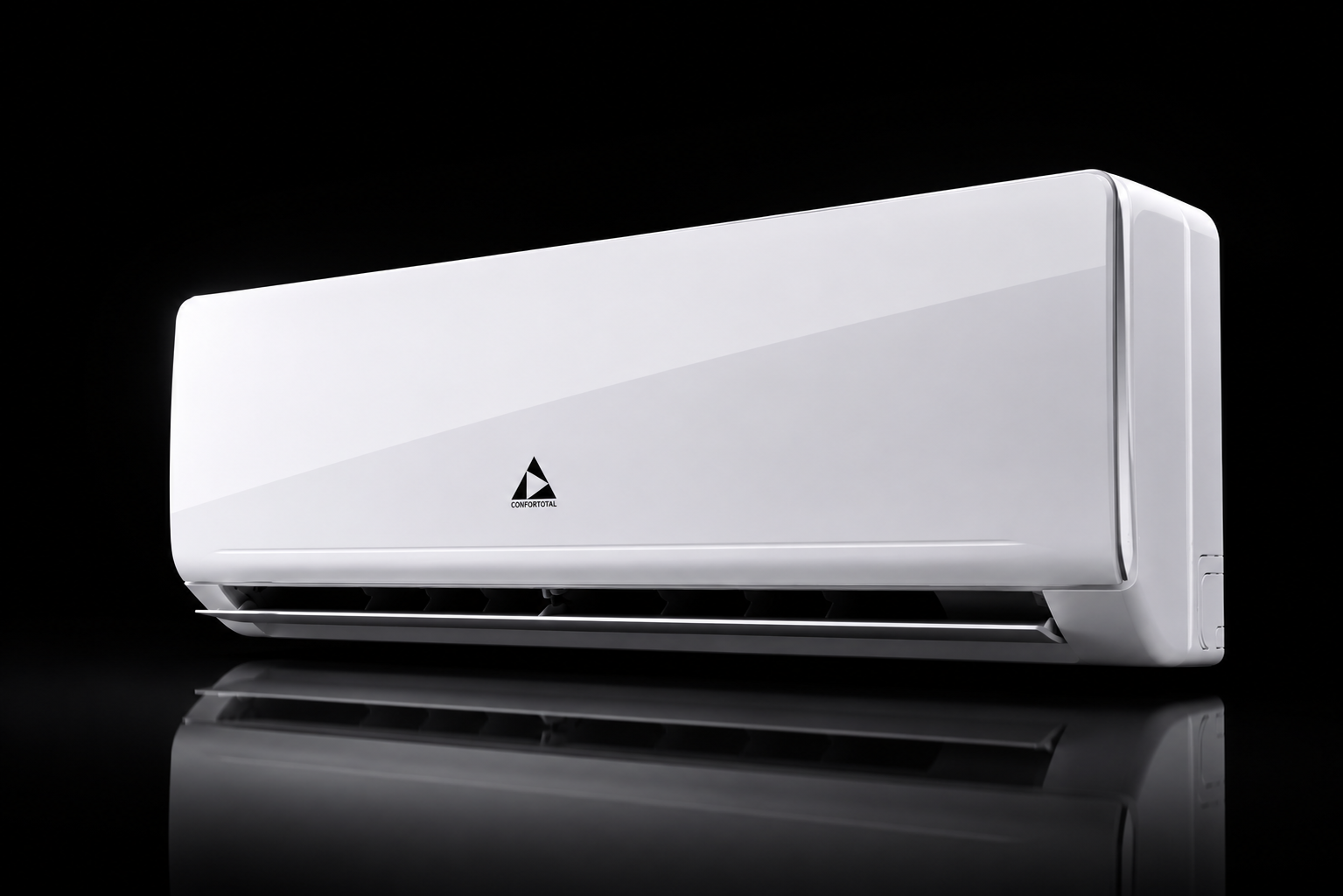

  • Display: Hidden digital display on the front panel of the indoor unit (evaporator) for reading the temperature and diagnostic error codes.

5. Installation Requirements (Standard)

  • Power Supply: Requires electrical wiring appropriately sized for the amperage and a dedicated independent circuit breaker. The 110V series requires special attention to the wire gauge due to higher amperage consumption compared to its 220V counterpart.

  • Interconnection Piping: Copper flare connections. If the installation exceeds the factory pre-charge length (generally over 5 meters), it is mandatory to calculate and add additional refrigerant per linear meter to prevent compressor damage and efficiency loss.

  • Environmental Protection: The equipment includes compressor protection modes (such as a 3-minute restart delay) and automatic Defrost logic to ensure continuous heat pump operation in colder climates.
